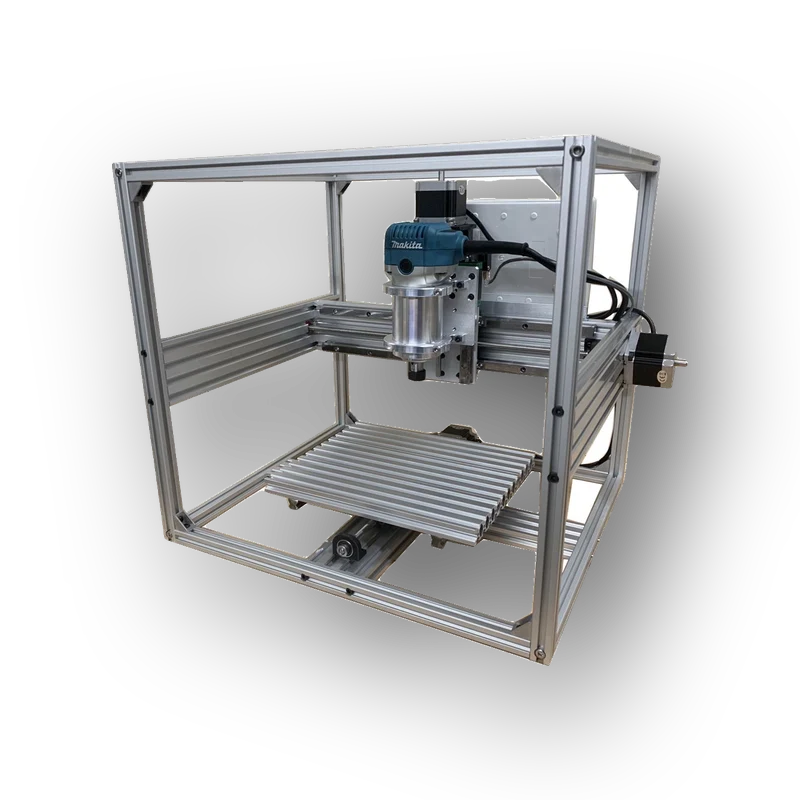

Tabletop CNC Router (/w 1HP Water-Cooled Spindle & VFD)

$2,695.00 $2,275.00

CNC Router or Milling machine with a working envelope of  13″ by 7″ by 4.5″ Travel (Upgrade to 1HP Water-cooled spindle and VFD Control)

Out of stock

SKU: VC1307-02 Category:

Description

The machine is completely assembled and testing and ready to cut right out of the box. No assembly required. Table top is T-Slot Aluminum for easy part hold down. This machine uses Rigid Linear Guide Ways on all axis, unlike other machines of this size which usually uses round guide shaft that are only supported on the ends.  All Drive system uses precision stainless steel lead-screw with anti-backlash nuts. This machine is specially designed with a box frame that allow for panels to be added the the frame and have it fully enclosed and keep dust in the machine while cutting and also added safety.


Travel:
X = 13″ (1320mm)
Y = 7″ (1320mm)
Z = 4.5″ (130mm) (Z clearance under gantry is 3.5″)

Overall footprint: 19.75″ x 17.25″ x 18″ (500x 440 x 460mm)
Table Top Size: 11.5 x 7.5″ (290mm x 240mm)

Includes:

* Fully supported Linear Guide Ways on X, Y and Z
* Spindle (1HP/800W Spindle with VFD)
* Spindle Mount
* 3 NEMA 23 Stepper motors
* 3 Smooth Stepper Drives
* USB Motion Controller board (with up to 100 kHz operation)
* Pre-wired and ready to cut
* Home Switches on all axis
* Spindle Control (Automatic on/off of Spindle and RPM via G-Code)
* Switching Power Supply
* Dust Proof Control Box
* GRBL Controller over USB Connection
* Copy of Candle Controller Software and Machine profile on USB Stick

Required to finish:
* Control computer (Windows XP to Windows10 with USB port)
* Copy of Mach3 License
* CAD/CAM Software of your choice (Cut2D, VCarve, Fusion 360)
NOTE: This machine comes with Water-Cooled spindle with VFD and NOT Mikta Trim Router
