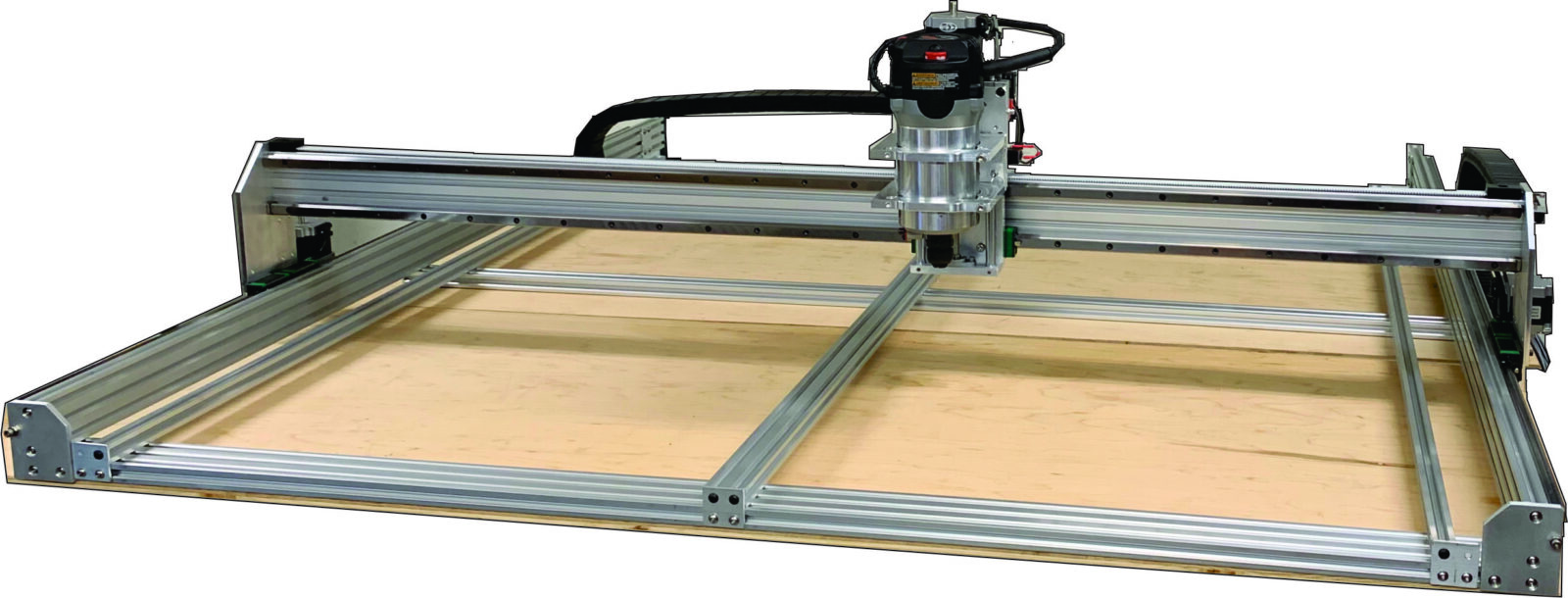

CNC Router Machines

Logo Test Cutting

Specification

Travel

X = 52″ (1320mm)
Y = 52″ (1320mm)
Z = 5″ (130mm)
 * Z clearance under gantry is 3″

Footprint

63″ x 63″ x 18″
(1600 x 1600 x 460mm)

Spindle

Porter Cable 892 Router
1000-2400 RPM Adjustable
Automatic – ON/OFF through Software

Controls

USB-Controller
Works with Mach3 Control Software

4-Axis Control Box

Features

LINEAR gUIDE WAYS

Linear Guide Ways on X and Y travel allow for smooth motion and fully supported structure

aNTI-BACKLASH DRIVE

The X and Y axis utilizes steel-reinforced Drive belt with a unique belt tensioning system for anti-backlash operation

HOME SWITCHES

Homing switches on all axis allow for machine to initialize to a repeatable starting point.
