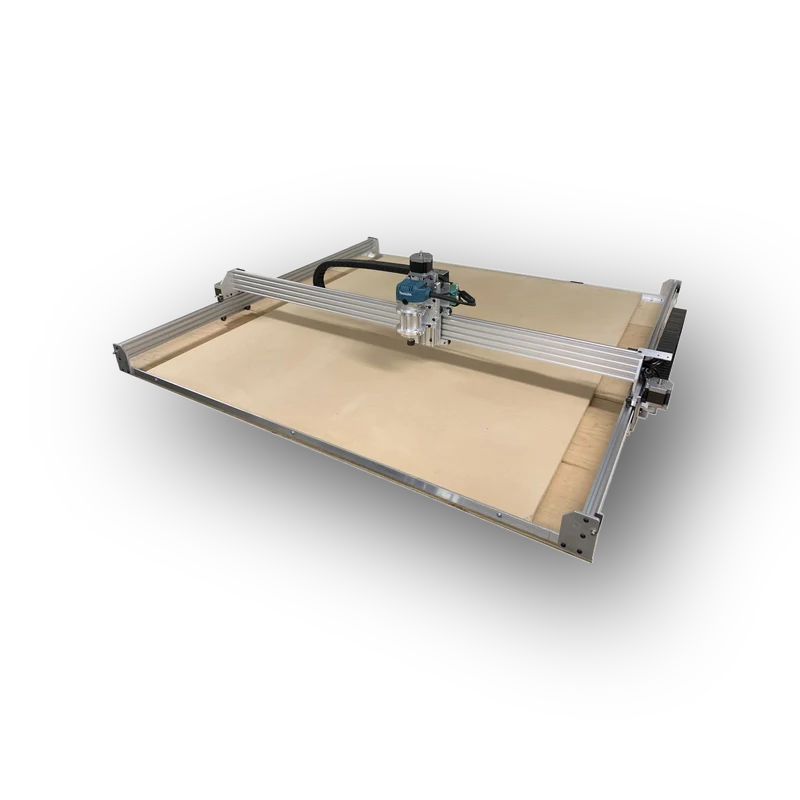

CNC Router Machine 50″x50″ (4’x4′) Econoline

$2,750.00 $2,295.00

This is an affordable CNC Router or Milling machine with a working envelope of 50″ by 50″ or (1280mm x1280mm)

SKU: VB5050E Category:

Description

This is a CNC Router or Milling machine with a working envelope of 50″ by 50″ or (1280mm x1280mm). The machine comes complete with control box/drivers and stepper motors. It’s controlled by GRBL which connects your computer via USB. The wooden table top (3/4″ MDF) is not included. The unit was fully assembled and tested then broken down in several pieces for shipping. (Re-assembly will take no more than 30 min to 1 hr). The drive system on the X and Y is a wide belt system with steel reinforced for a smooth and rigid operation. The Z is driven by precision stainless steel lead-screw with anti-backlash nut.



Travel (Cutting Area):

X = 50″ (1275 mm)
Y = 51″ (1300 mm)
Z = 4.3″ (110mm) (Z clearance under gantry is 3″)

Overall footprint: 63″ x63″ x 18″ (1600 x 1600 x 460mm)

Includes:

  • Aluminum frame & hardware
  • 4 – NEMA-23stepper motors
  • Pre-wired with terminal connectors
  • Cable Drag Chain to keep wires neat and tidy
  • Control Box and high-torque drivers
  • Industrial grade motion controller (GRBL firmware)
  • Homing switches
  • USB Stick with Control software (Candle-vBot-GRBL)
  • Cutting spindle (Makita 1.25 HP Router)
  • Spindle Relay Module (Automatic on/off of Spindle)
  • One 0.25″ Carbide end mill cutter
Required to finish (Not Included):
  • Wooden Table Top (48″ x 60″ MDF)
  • Control Computer (Windows XP to Win10 with USB)
  • CAD/CAM Software of your choice (Cut2D, VCarve, SheetCAM, Fusion 360)
