CNC Router 50×24

$3,999.00 $3,349.00

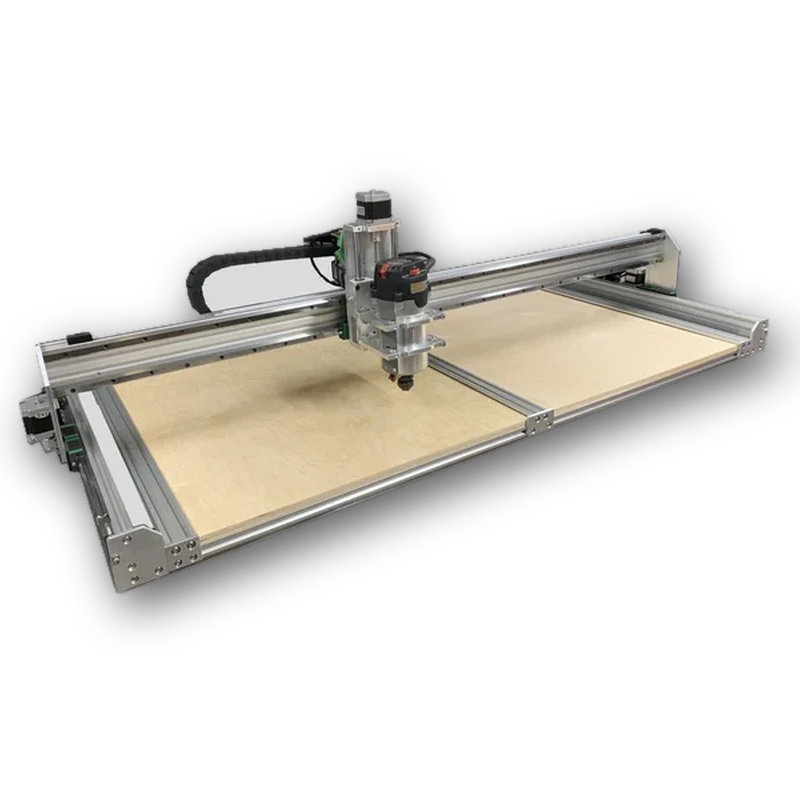

This is a CNC Router or Milling machine with a working envelope of  50″ by 24″ or (1320mm x 610mm).
SKU: VC5024-01 Category:


The machine comes almost completed with the only thing not included is the wooden table top and a license of Mach3. The unit was fully assembled and tested then broken down in several pieces for shipping. (Re-assembly will take no more than 30 min to 1 hr). The drive system on the X and Y is a wide belt system with steel reinforced for a smooth and rigid operation. The Z is driven by precision stainless steel lead-screw with anti-backlash nut.
Check out the video on our YouTube channel under “vBotTech”
X = 52″ (1320mm)
Y = 24.25″ (610mm)
Z = 5″ (130mm) (Z clearance under gantry is 3″)
Overall footprint: 63″ x 36″ x 18″ (1600 x 915 x 460mm)
* Computer (Laptop with SSD Hard-drive) Windows10 OS
* Pre-installed Mach3 with Drivers and Profile for the machine configured and calibrated.
* Control box package
* Fully supported Linear Guide Ways on X and Y
* USB Motion Controller board (with up to 100 kHz operation)
* Spindle (Porter Cable 892 Router)
* Router Mount
* 4 Nema 23 Stepper motors
* Pre-wired and ready to plug in to control box
* Cable Drag Chain to keep wires neat and tidy
* Home Switches
* Spindle Relay Module (Automatic on/off of Spindle)
Required to finish:
* Wooden Table Top (2 pc. 3/4″ x 24 x 30 MDF for Birch Plywood)

* Copy of Mach3 License

* CAD/CAM Software of your choice (Cut2D, VCarve, Fusion 360)
