Description

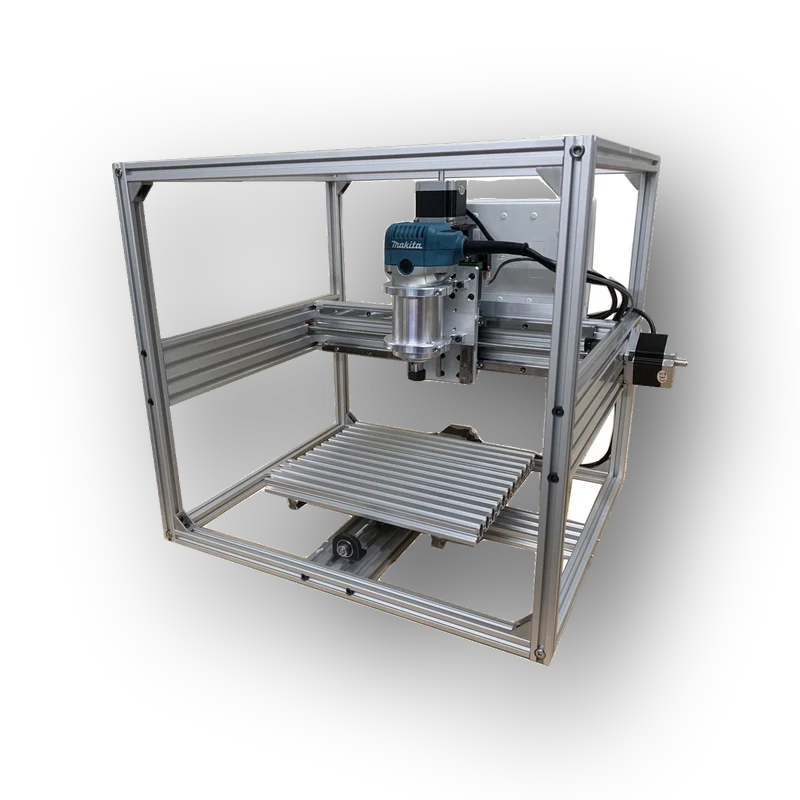

The machine is completely assembled and testing and ready to cut right out of the box. No assembly required. Table top is T-Slot Aluminum for easy part hold down. This machine uses Rigid Linear Guide Ways on all axis, unlike other machines of this size which usually uses round guide shaft that are only supported on the ends. All Drive system uses precision stainless steel lead-screw with anti-backlash nuts. This machine is specially designed with a box frame that allow for panels to be added the the frame and have it fully enclosed and keep dust in the machine while cutting and also added safety.
Travel:
X = 13″ (1320mm)
Y = 7″ (1320mm)
Z = 4.5″ (130mm) (Z clearance under gantry is 3.5″)
Overall footprint: 19.75″ x 17.25″ x 18″ (500x 440 x 460mm)
Table Top Size: 11.5 x 7.5″ (290mm x 240mm)
Includes:
* Fully supported Linear Guide Ways on X, Y and Z
* Spindle (Makita 1.25HP Router)
* Router Mount
* 3 NEMA 23 Stepper motors
* 3 Smooth Stepper Drives
* 3 NEMA 23 Stepper motors
* 3 Smooth Stepper Drives
* USB Motion Controller board (with up to 100 kHz operation)
* Pre-wired and ready to cut
* Home Switches on all axis
* Spindle Relay Module (Automatic on/off of Spindle)
* Switching Power Supply
* Switching Power Supply
* Dust Proof Control Box
* Demo Copy of Mach3 on USB Stick and Machine Profile so setup is easy (Requires Mach3 License)
* Demo Copy of Mach3 on USB Stick and Machine Profile so setup is easy (Requires Mach3 License)
Required to finish:
* Control computer (Windows XP to Windows10 with USB port)
* Copy of Mach3 License
* CAD/CAM Software of your choice (Cut2D, VCarve, Fusion 360)
* CAD/CAM Software of your choice (Cut2D, VCarve, Fusion 360)
