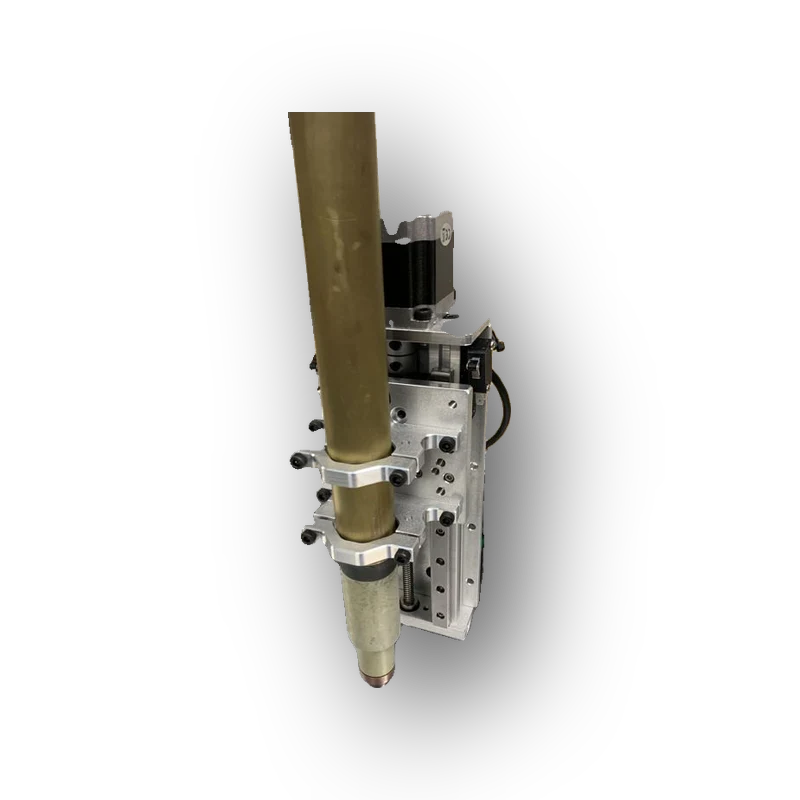

CNC Plasma Table Z-Axis with Precision Linear Rail and Floating Head THC

$399.00 $335.00

SKU: SL-Z5375-P2 Category:

Description

Z-Axis for CNC Plasma Table with Precision linear rail and floating head
Travel: 5.375″ Stroke
Mount Type: Plasma Machine torch with 1.375″ diameter (35mm)
Motor Mount: for Nema 23 (Not Included)
Leadscrew pitch: 8mm per turn
Includes Home Switch
Includes Part Touch Switch
Back plate dimension: 4.00″ x 9.0″ X 0.25″

Mouting Hole: 90mm (3.54″) Outside width, 30mm (1.18″) Inside width, 50mm (1.97″) or 100mm (3.94″) High #10 or 5mm Screws

Motor Mount: for Nema 23 (Motor Not Included)
NEMA 23 Stepper Motor NOT INCLUDED











TORCH NOT INCLUDED
