Sale!

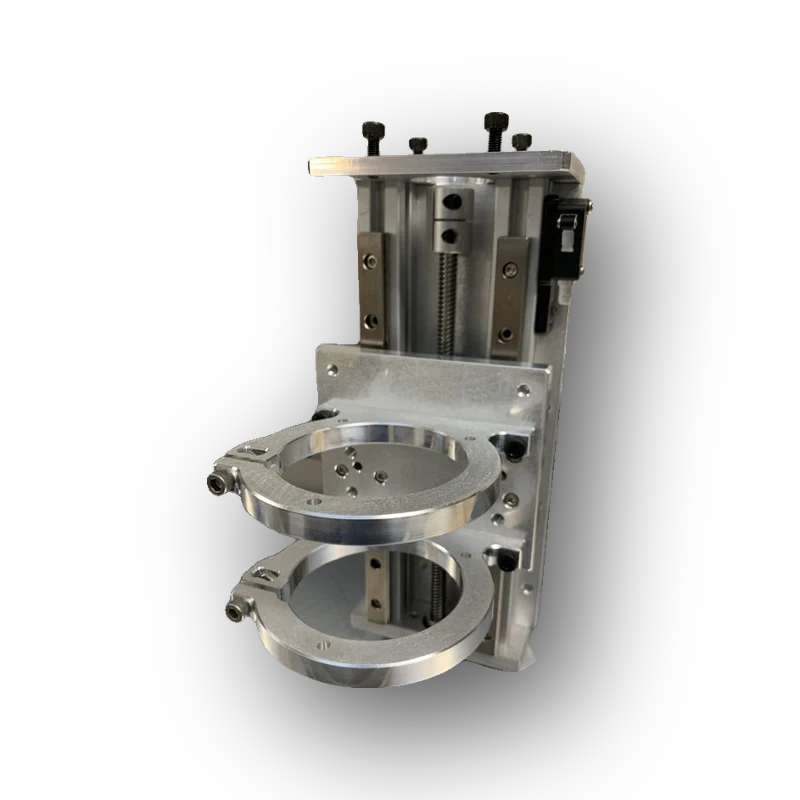

CNC Router Z-Axis Linear Stage Slide Kit 5.75″ Travel for Mill or Router DIY

$350.00 $299.00

SKU: SL-Z5375-R2 Category:

Description

CNC Router Z-Axis Linear Stage Slide Kit 5.75″ Travel for Mill or Router DIY



Travel: 5.75″ Stroke
Linear Rails and Blocks
Mount Type: Makita 1.25HP RT0701C Router  (mount is included)
Stepper Motor Mount: for Nema 23 (Stepper Motor Not Included)
Motor Coupler included for 0.25″ shaft
Includes Home Switches
Back plate dimension: 4.00″ x 9.0″ X 0.25″
Mouting Hole: 90mm (3.54″) Outside width, 30mm (1.18″) Inside width, 50mm (1.97″) or 100mm (3.94″) High #10 or 5mm Screws
Motor Mount: for Nema 23 (Motor Not Included)

NEMA 23 Stepper Motor NOT INCLUDED
Router Spindle NOT INCLUDED
