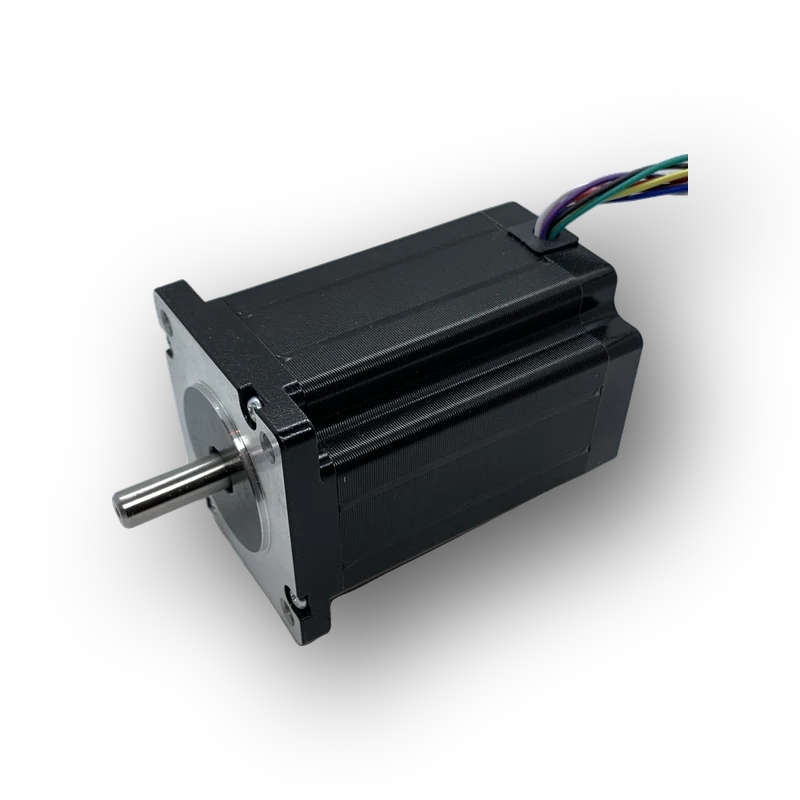

Stepper Motor Nema24

$74.95 $65.00

This nema 24 stepper motor with step angle 1.8deg and size 60x60x80mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It’s houlding torque reach 2.2Nm(312oz.in) with unipolar connection and 3.1Nm(439oz.in) with bipolar connection. A rear shaft can mount encoder, hand wheel or equals.

Electrical Specification

  • Manufacturer Part Number: 24HS34-3008D
  • Motor Type: Unipolar/Bipolar
  • Step Angle: 1.8 deg
  • Holding Torque(Bipolar): 3.1Nm(439oz.in)
  • Holding Torque(Unipolar): 2.2Nm(312oz.in)
  • Rated Current(Bipolar Serial): 2.1A
  • Rated Current(Bipolar Parallel): 4.2A
  • Rated Current(Unipolar): 3.0A
  • Phase Resistance(Bipolar Serial): 2.6ohms
  • Phase Resistance(Bipolar Parallel): 0.65ohms
  • Phase Resistance(Unipolar): 1.3ohms
  • Inductance(Bipolar Serial): 12.8mH ± 20%(1KHz)
  • Inductance(Bipolar Parallel): 3.2mH ± 20%(1KHz)
  • Inductance(Unipolar): 3.2mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 60 x 60mm
  • Body Length: 88mm
  • Shaft Diameter: Φ8mm
  • Front Shaft Length: 24mm
  • Rear Shaft Length: 15mm
  • D-cut Length: 20mm
  • Number of Leads: 8
  • Lead Length: 600mm
  • Weight: 1.4kg

4 in stock

SKU: stp2401 Category:

Description

Nema 24 Stepper Motor, 3.1Nm (439 oz.in) 60x60x80mm 8 Wires
